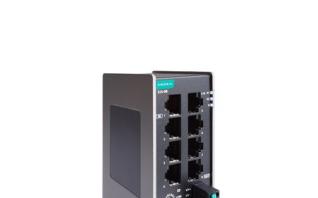

EtherCAT

• FMMU: 8
• Sync Manager: 8
• Supported Topologies: Star Line Tree Ring
• Interfaces: 8 x 100BaseT(X) ports (RJ45 connector) Auto MDI/MDI-X connection

Switch Properties

• Port Combination: 1 (IN), 7 (OUT)
• Port Delay: 1 μs per port (approximately)

Rotary Switch Configuration

• ID Selector: Valid address range: 1 to 4095

Power Parameters

• Connector: 1 removable 4-contact terminal block(s)
• Input Current: 0.30 A (max.)
• Input Voltage: 12/24/48 VDC
• Operating Voltage: 9.6 to 60 VDC
• Overload Current Protection: Supported
• Reverse Polarity Protection: Supported

LED Interface

• LED Indicators: PWR1, PWR2, RUN

Physical Characteristics

• Dimensions: 43 x 100 x 75 mm (1.69 x 3.94 x 2.95 in)
• Weight: 340 g (0.75 lb)
• Cable Length: 100 m
• Housing: Metal
• Installation: DIN-rail mounting Wall mounting (with optional kit)

Environmental Limits

• Operating Temperature: -10 to 60°C (14 to 140°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)

Standards and Certifications

• Safety: UL 61010-2-201 EN 62368-1
• EMC: EN 55032/35 EN 61000-6-2/-6-4
• EMI: CISPR 22/32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
• Shock: IEC 60068-2-27
• Vibration: IEC 60068-2-6 IEC 60068-2-64
• Freefall: ISTA-1A (with package)

MTBF

• Time: 6,294,742 hrs
• Standards: Telcordia (Bellcore), GB

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
