Technolec

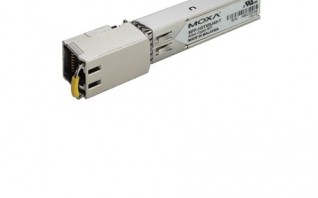

SFP-1G COPPER SERIES

SFP module with 1 1000BaseT port with RJ45 connector for 100 m transmission, -40 to 75°C operating temperature
sfp-1g-copper-series

Ethernet Interface

  • Ports: 1
  • 10/100/1000BaseT(X) Ports (RJ45 connector): 1
  • Note: The port can not be used for Turbo Ring v1, Turbo Ring v2, and Turbo Chain.
  • 1000BaseT(X) Ports (RJ45 connector): 1

Power Parameters

  • Power Consumption: Max. 1.2 W

Environmental Limits

  • Ambient Relative Humidity: 5 to 95% (non-condensing)
  • Operating Temperature: -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included): -40 to 85°C (-40 to 185°F)

Standards and Certifications

  • Safety: CE FCC EN 60825-1 UL 60950-1
  • Maritime: DNV

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty
