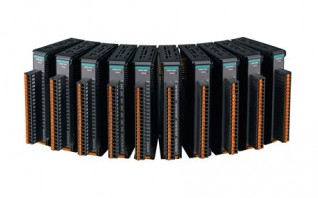

Input/Output Interface

• Digital Input Channels: 16
• Isolation: 3k VDC or 2k Vrms

Digital Inputs

• Connector: Spring-type Euroblock terminal
• Sensor Type: Dry contact Wet contact (PNP)
• I/O Mode: DI or event counter (only supports the first 4 channels)
• Dry Contact: On: short to FP+ Off: open
• Wet Contact (DI to FP-): On: 10 to 30 VDC Off: 0 to 3 VDC
• Counter Frequency: 1 kHz
• Digital Filtering Time Interval: Software configurable

Power Consumption

• System Power: 59.4 mA @ 3.3 VDC
• Field Power: 19.3 mA @ 12 VDC 25.3 mA @ 24 VDC

Physical Characteristics

• Weight: 77 g (0.17 lb)
• Dimensions: 19.5 x 99 x 60.5 mm (0.77 x 3.90 x 2.38 in)
• Housing: Plastic
• Installation: DIN-rail mounting
• Wiring: 18 to 24 AWG
• Strip Length: I/O cable, 9 to 10 mm

Environmental Limits

• Operating Temperature: -20 to 60°C (-4 to 140°F)
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
• Altitude: Up to 4000 meters
• Altitude: Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

• EMC: EN 55032/35
• EMI: CISPR 32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 PFMF
• Shock: IEC 60068-2-27
• Vibration: IEC 60068-2-6
• Safety: UL 61010-2-201
• Hazardous Locations: ATEX Class I Division 2

Declaration

• Green Product: RoHS, CRoHS, WEEE

MTBF

• Time: 661,247 hrs
• Standards: Telcordia Standard SR-332

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
